In today’s rapidly evolving world, surveillance has become a critical component of ensuring public safety and security. Whether it’s in the form of video surveillance in public spaces or advanced network camera systems in critical infrastructure, the importance of being able to monitor and record events as they unfold cannot be overstated. DAHUA, a global leader in video surveillance technology, has been at the forefront of innovation, offering network camera that harness the power of surveillance.
DAHUA’s network cameras are designed to be powerful, yet user-friendly. With high-resolution imaging, wide dynamic range, and advanced compression algorithms, these cameras ensure that every detail is captured with sharp clarity, even in the most challenging lighting conditions. But what truly sets DAHUA apart is the integration of intelligent functionalities into their network camera offerings.
With AI-powered analytics and machine learning capabilities, DAHUA’s network cameras can learn and adapt to new patterns, distinguishing between normal and abnormal activities. This allows security operators to receive real-time alerts and actionable insights, empowering them to respond swiftly to potential threats or incidents.
Moreover, these cameras are highly scalable and compatible with a variety of existing security systems. This flexibility makes them an ideal choice for small businesses looking to upgrade their security measures as well as large enterprises with complex security requirements. Whether it’s a single location or multiple sites across a city, DAHUA ptz network cameras can be easily integrated into existing frameworks for a comprehensive surveillance solution.
Security is not just about capturing footage; it’s also about ensuring the privacy and safety of that footage. DAHUA understands this, which is why their network cameras utilize the latest encryption standards to protect video streams from unauthorized access or tampering. This ensures that the footage remains secure, whether it’s being stored or transmitted over networks.
Lastly, with a user-friendly interface and intuitive controls, these advanced features are accessible to everyone. Security operators can manage their surveillance systems with ease, gaining peace of mind knowing that they have the latest technology at their fingertips.
Stay Secure, Stay Ahead: DAHUA Unveils State-of-the-Art Network Camera
In an ever-evolving world, the importance of staying one step ahead in terms of security cannot be emphasized enough. With the rising number of security threats, from petty crimes to sophisticated cyber-attacks, the need for advanced and reliable surveillance systems is more pressing than ever. DAHUA, a global leader in video surveillance technology, has been at the forefront of innovation, offering state-of-the-art network camera that put security at the forefront.
DAHUA’s network cameras are designed with the latest technology, featuring high-resolution imaging, wide dynamic range, and advanced compression algorithms that ensure every detail is captured with crystal clarity. But what truly sets these cameras apart is their intelligent functionalities. With AI-powered analytics and machine learning capabilities, these smart cameras can distinguish between normal and abnormal activities, providing users with real-time alerts and actionable insights.
DAHUA IPC-HFW5241E-Z12E 2MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5241E-Z12E
* The parameters and datasheets below can only be applied to 5241-Z-S3 series.
> 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920×1080) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 150 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.

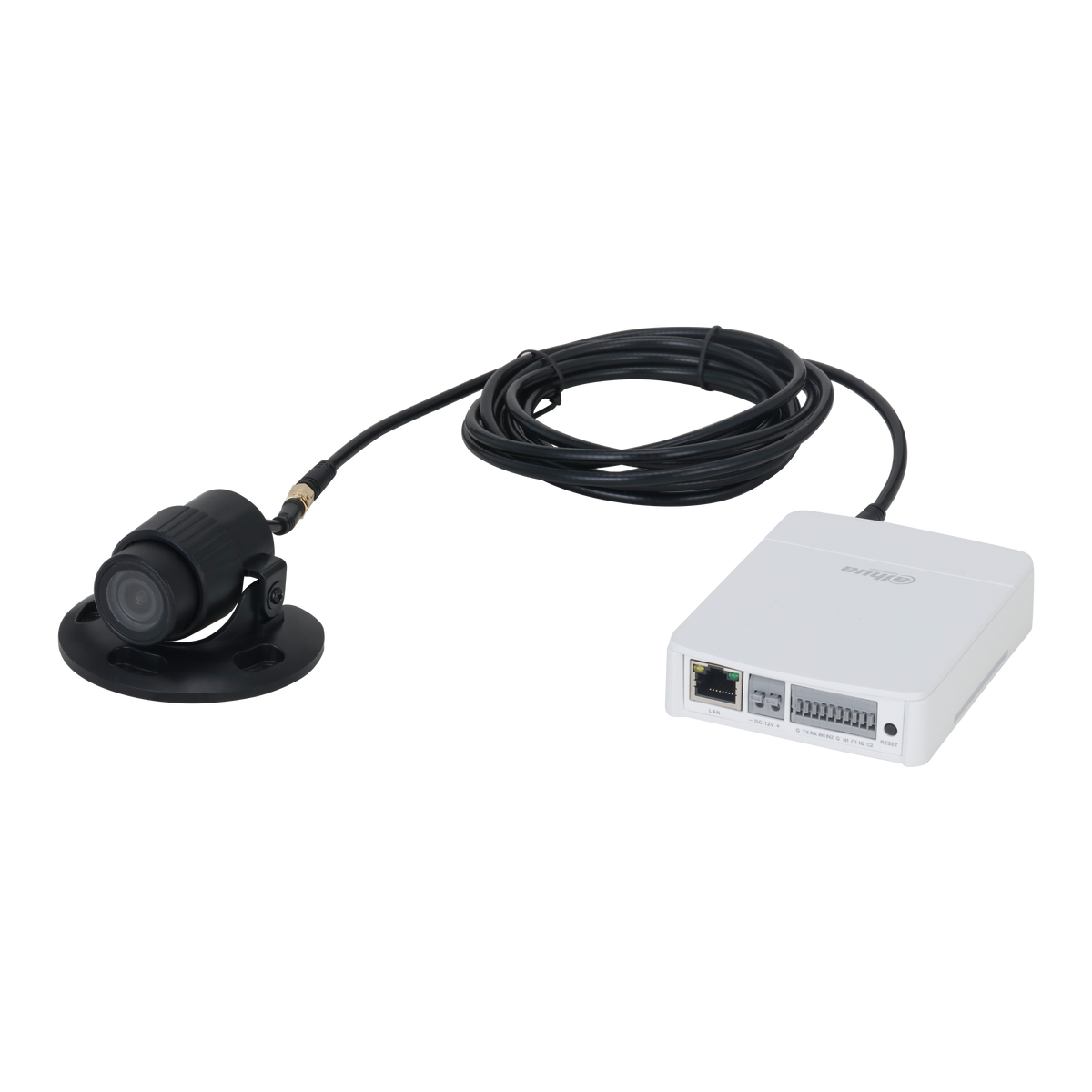

DAHUA IPC-HUM8441E-E1-L3-S2 4MP Covert Pinhole WizMind Network Camera-KIT
IPC-HUM8441E-E1-L3-S2
> Starlight 4-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering and face detection.
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
> 12 VDC/PoE power supply, easy for installation.
> The Network Camera Main Box connects to the lens through the included 8 m coaxial cable.
> IP67 protection (L3).
> Power on after connecting the lens to the back-end device; otherwise the device might be damaged.
DAHUA IPC-HDW8441X-3D 4MP WizMind Dual-Lens Network Camera
IPC-HDW8441X-3D
> 4-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2560 × 1440) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 20 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> People counting: Queue management, people counting in area, entry/ exit/pass number counting, and it can output daily/monthly/yearly report.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485, BNC, supports max. 512 G Micro SD card; built in MIC and speaker.
> 12 VDC/PoE power supply, 12 VDC power output, and max. current 165 mA, easy for installation.
> IP67and IK10 protection.
> Supports altitude self-adaptive, which adapts the altitude and angle of installation to improve the detection effect of people.
> Supports crowd detection and leave post detection.

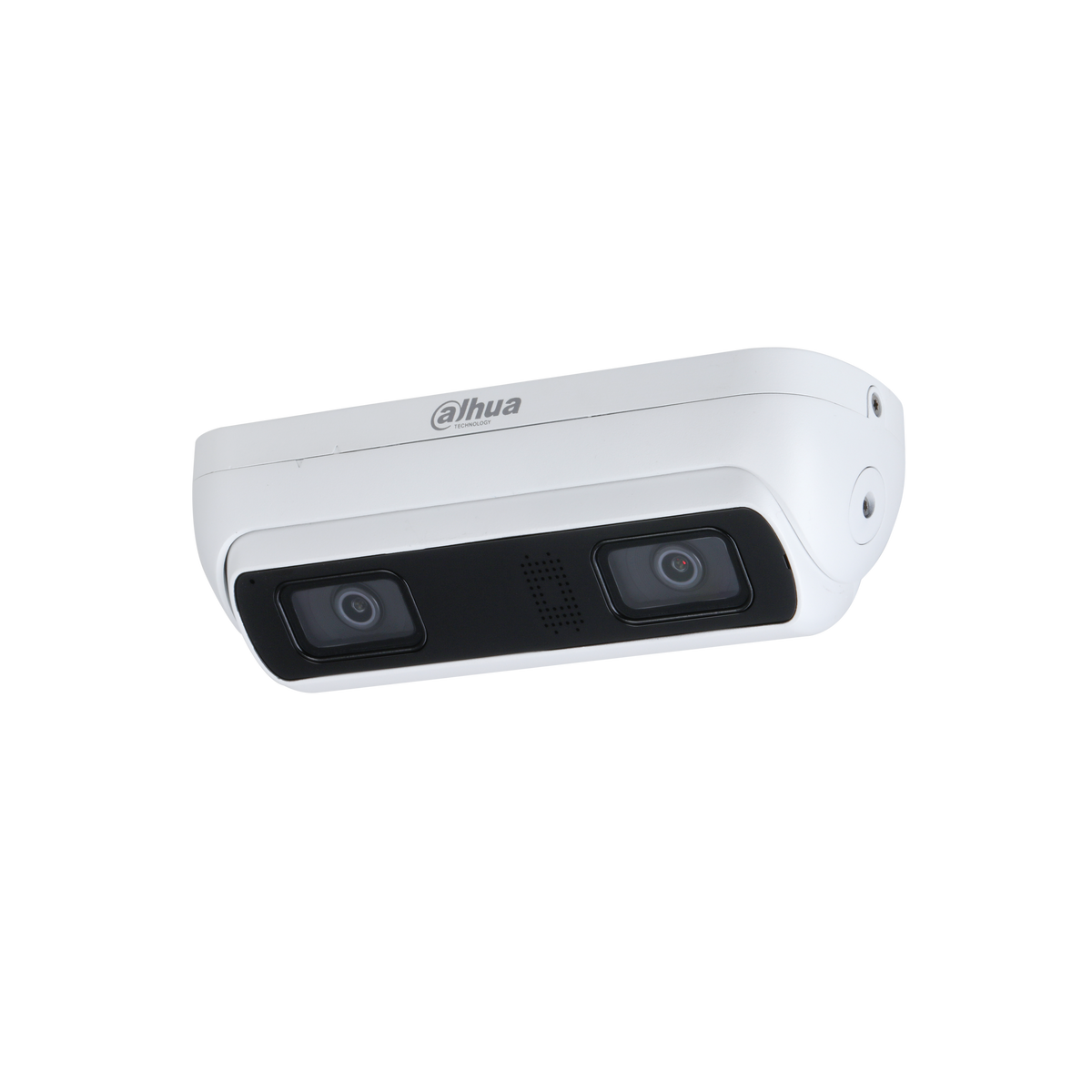

DAHUA IPC-HDW8341X-BV-3D 3MP WizMind Dual-Lens Network Camera
IPC-HDW8341X-BV-3D
> 3MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 3MP (2048 × 1536) @30 fps
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Stereo analysis: Fall detection, people approaching detection, people No. error, stay detection, and violence detection
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G
> Micro SD card, built-in Mic and speaker. Siren active deterrence, built-in 8 voices, and user can import custom voices.
> 12V DC/PoE power supply
> IP67, IK10 protection
DAHUA IPC-HFW3549T1-ZAS-PV 5MP Smart Dual Illumination Active Deterrence Vari-focal Bullet WizSense Network Camera
IPC-HFW3549T1-ZAS-PV
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-click arming/disarming through alarm input.

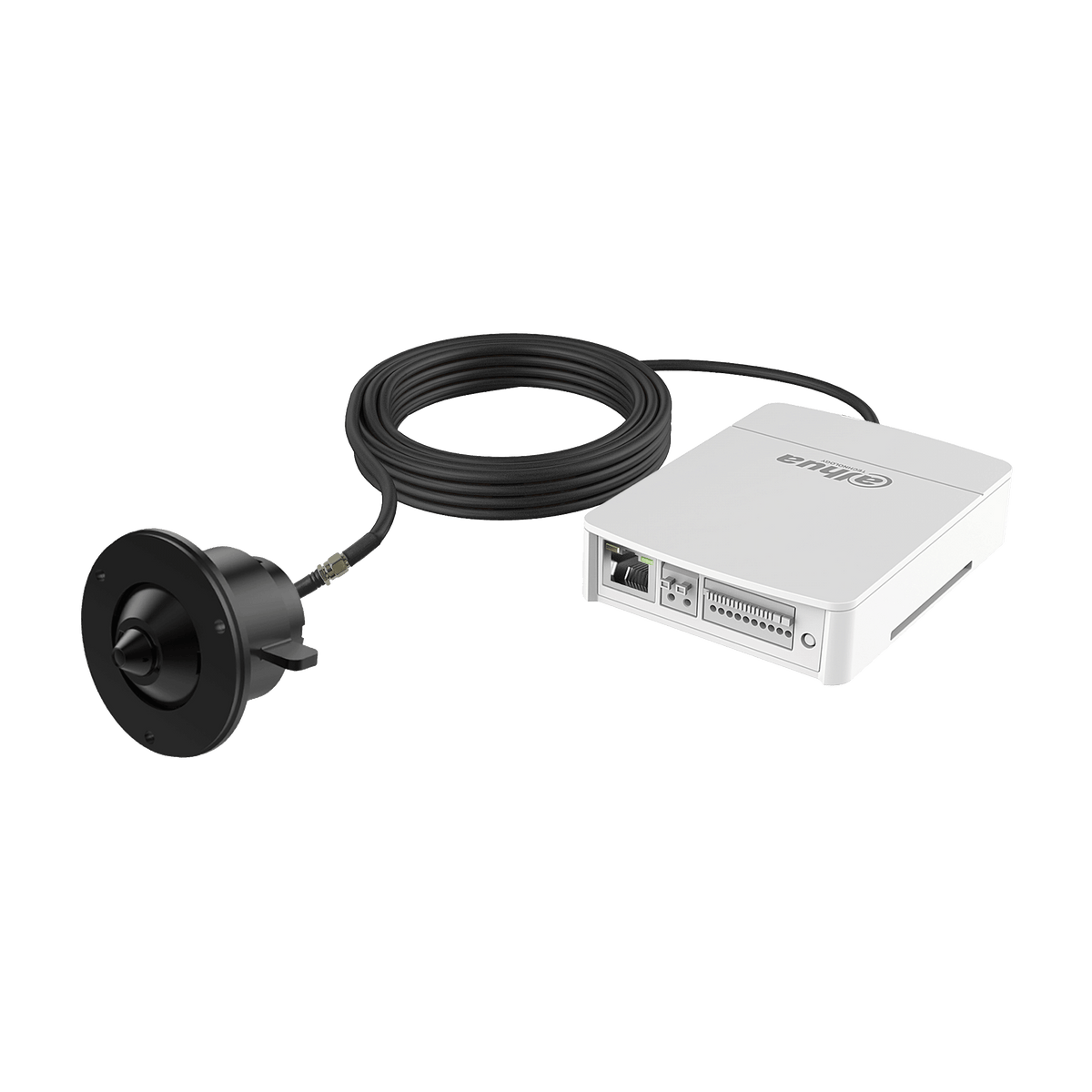

DAHUA IPC-HUM8441-E1-L1 4MP Covert Pinhole WizMind Network Camera-KIT
IPC-HUM8441-E1-L1
> Outputs max. 4MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression ratio, and ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and face detection.
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card space warning, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
> 12V DC/PoE power supply facilitates installation.
> Power on after connecting the lens to the back-end device; otherwise the device might be damaged.
DAHUA SD49212T-HN 2MP 12x Starlight IR PTZ Network Camera
SD49212T-HN
2MP 12x Starlight IR PTZ Network Camera
> Powerful 12x optical zoom
> Starlight technology
> Max.25/30fps@1080P
> IVS
> Support PoE+
> IR distance up to 100m
> IP66
DAHUA SD42212T-HN(-S2) 2MP 12x Starlight PTZ Network Camera
SD42212T-HN(-S2)
2MP 12x Starlight PTZ Network Camera
> Powerful 12x optical zoom
> Support Triple-streams encoding
> Max. 25/30fps@1080P
> IVS
> Support PoE+
> IP66, IK10
DAHUA IPC-HUM8441-E1-L4 4MP Covert Pinhole WizMind Network Camera-KIT
IPC-HUM8441-E1-L4
> Outputs max. 4MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression ratio, and ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and face detection
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card space warning, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
> 12V DC/PoE power supply facilitates installation.
> Power on after connecting the lens to the back-end device; otherwise the device might be damaged.
DAHUA IPC-HDBW5442E-ZHE 4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
IPC-HDBW5442E-ZHE
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
DAHUA IPC-HFW5842E-ZE 8MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5842E-ZE
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
DAHUA IPC-HDBW5842E-ZE 8MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
IPC-HDBW5842E-ZE
8MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.

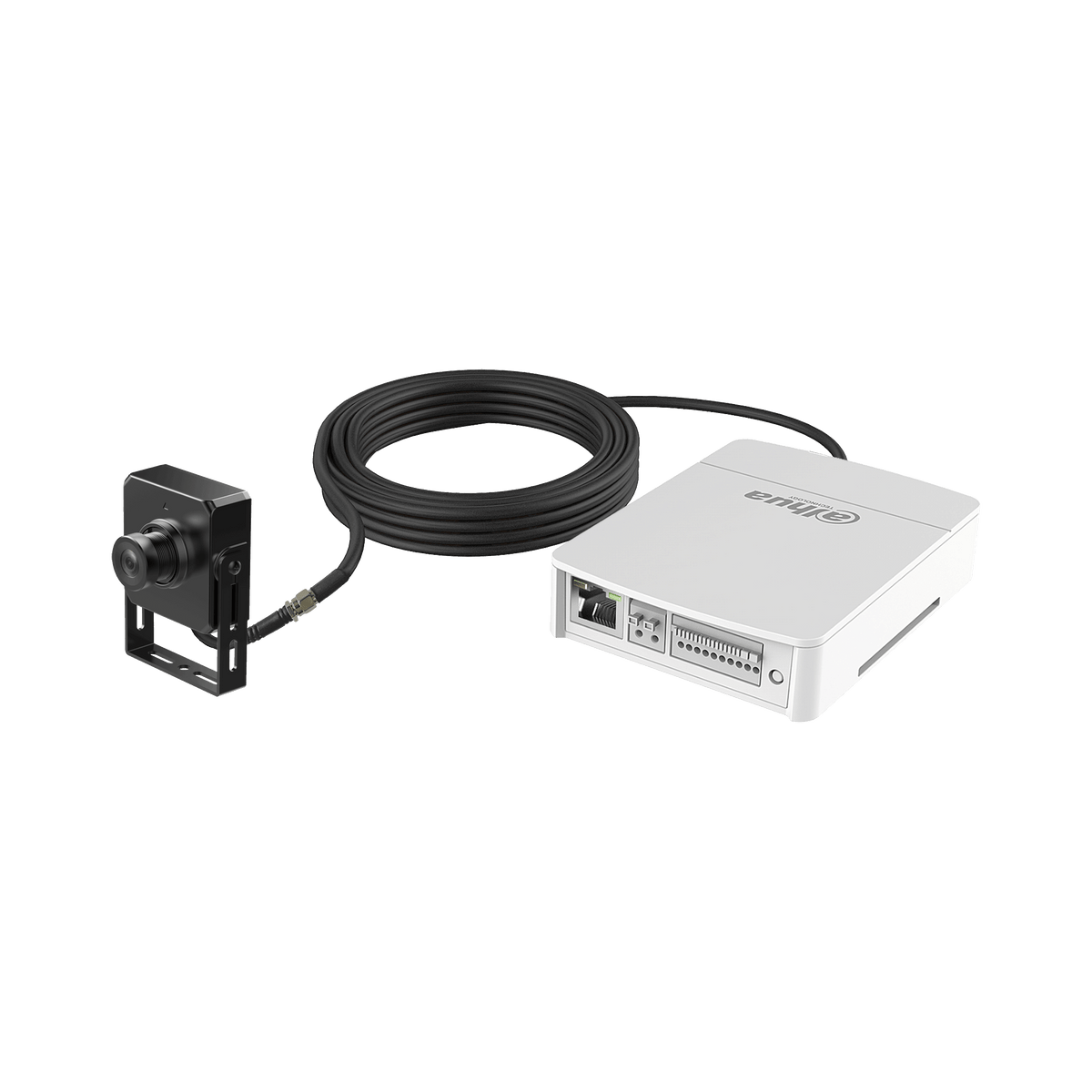

DAHUA IPC-HUM8441-E1-L5 4MP Covert Pinhole WizMind Network Camera-KIT
IPC-HUM8441-E1-L5
> Outputs max. 4MP (2688 × 1520)@25/30 fps.
> H.265 codec, high compression ratio, and ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and face detection.
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card space warning, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
> 12V DC/PoE power supply facilitates installation.
> Power on after connecting the lens to the back-end device; otherwise the device might be damaged.
DAHUA IPC-HDW5842T-ZE 8MP IR Vari-focal Eyeball WizMind Network Camera
IPC-HDW5842T-ZE
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.
DAHUA SD40212T-HN(-S2) 2MP 12x Starlight PTZ Network Camera
SD40212T-HN(-S2)
2MP 12x Starlight PTZ Network Camera
> Powerful 12x optical zoom
> Support Triple-streams encoding
> Max. 25/30fps@1080P
> IVS
> Support PoE+
> IP66, IK10
DAHUA SD42C212T-HN(-S2) 2MP 12x Starlight PTZ Network Camera
SD42C212T-HN(-S2)
2MP 12x Starlight PTZ Network Camera
> Powerful 12x optical zoom
> Support Triple-streams encoding
> Max. 25/30fps@1080P
> IVS
> Support PoE+
> IK10
DAHUA IPC-HFW5541E-Z5E 5MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5541E-Z5E
* The parameters and datasheets below can only be applied to 5541-Z-S3 series.
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
DAHUA IPC-HDBW5541E-Z5E 5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
IPC-HDBW5541E-Z5E
* The parameters and datasheets below can only be applied to 5541-Z-S3 series.
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
DAHUA IPC-HFW5442H-ZHE 4MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5442H-ZHE
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.
DAHUA IPC-HDBW5442H-ZHE 4MP IR Vari-focal Dome WizMind Network Camera
IPC-HDBW5442H-ZHE
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.
DAHUA IPC-HF5842F-ZE 8MP Box WizMind Network Camera
IPC-HF5842F-ZE
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 512 GB Micro SD card, built-in MIC.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> 12 VDC/24 VAC/PoE power supply; ePoE.
> 12 VDC power output, and max. current 165 mA, easy for installation.
> SMD 3.0.
DAHUA IPC-HF7442F-Z-S2 4MP BOX WizMind Network Camera
IPC-HF7442F-Z-S2
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485, BNC, supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/24 VAC/PoE power supply, 12 VDC power output, and max. current 165 mA, easy for installation.
DAHUA PSDW5631S-B360 3x2MP Multi-Sensor Network Camera+PTZ Camera
PSDW5631S-B360
3x2MP Multi-Sensor Network Camera+PTZ Camera
> PTZ: 1/2.7” 2Megapixel progressive scan CMOS
> H.265/H.264 dual-stream encoding
> 25fps@1920×1080
> Support 360-degree no-splicing panoramic view
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Max IR LEDs Length 15m
> Micro SD card slot, up to 256GB
> PoE+
DAHUA IPC-HFW5449T1-ASE-D2 4 MP Dual Lens Fixed-focal Bullet WizMind Full-color Network Camera
IPC-HFW5449T1-ASE-D2
> Dual AI sensors with multi-spectral imaging technology that produces colorful images in low illumination conditions.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Built-in warm light/IR LED, with a maximum illumination distance of 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and parking detection.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, and face exposure.
> People counting: Queue management, people counting in area, entered/exited people counting, and generating and exporting report (day/month/year).
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
DAHUA IPC-HDBW5442E-Z4E 4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
IPC-HDBW5442E-Z4E
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
DAHUA SD52C225U-HNI 2MP 25x Starlight PTZ Network Camera
SD52C225U-HNI
2MP 25x Starlight PTZ Network Camera
> Powerful 25x optical zoom
> H.265 Encoding
> Starlight technology
> Max. 50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IK10
DAHUA IPC-HF7842F-Z-S2 8MP BOX WizMind Network Camera
IPC-HF7842F-Z-S2
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS485, BNC, supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/24 VAC/PoE power supply, 12 VDC power output, and max. current 165 mA, easy for installation.
DAHUA IPC-HFW5442E-Z4E 4MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5442E-Z4E
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
DAHUA IPC-HFW5449T1-ZE-LED 4MP Full-color Vari-focal Warm LED Bullet WizMind Network Camera
IPC-HFW5449T1-ZE-LED
> 4MP 1/1.8″ CMOS image sensor, low illuminance, high image definition.
> Outputs max. 4MP (2688 × 1520) @30 fps.
> Built-in warm illuminator, and the max. illumination distance is 70 m.
> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265,flexible coding, ap plicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker, support two-way talk.
> 12V DC/PoE power supply.
> ePoE, IP67 protection.
> SMD 3.0
DAHUA IPC-HDBW5842E-ZHE 8MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
IPC-HDBW5842E-ZHE
8MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.

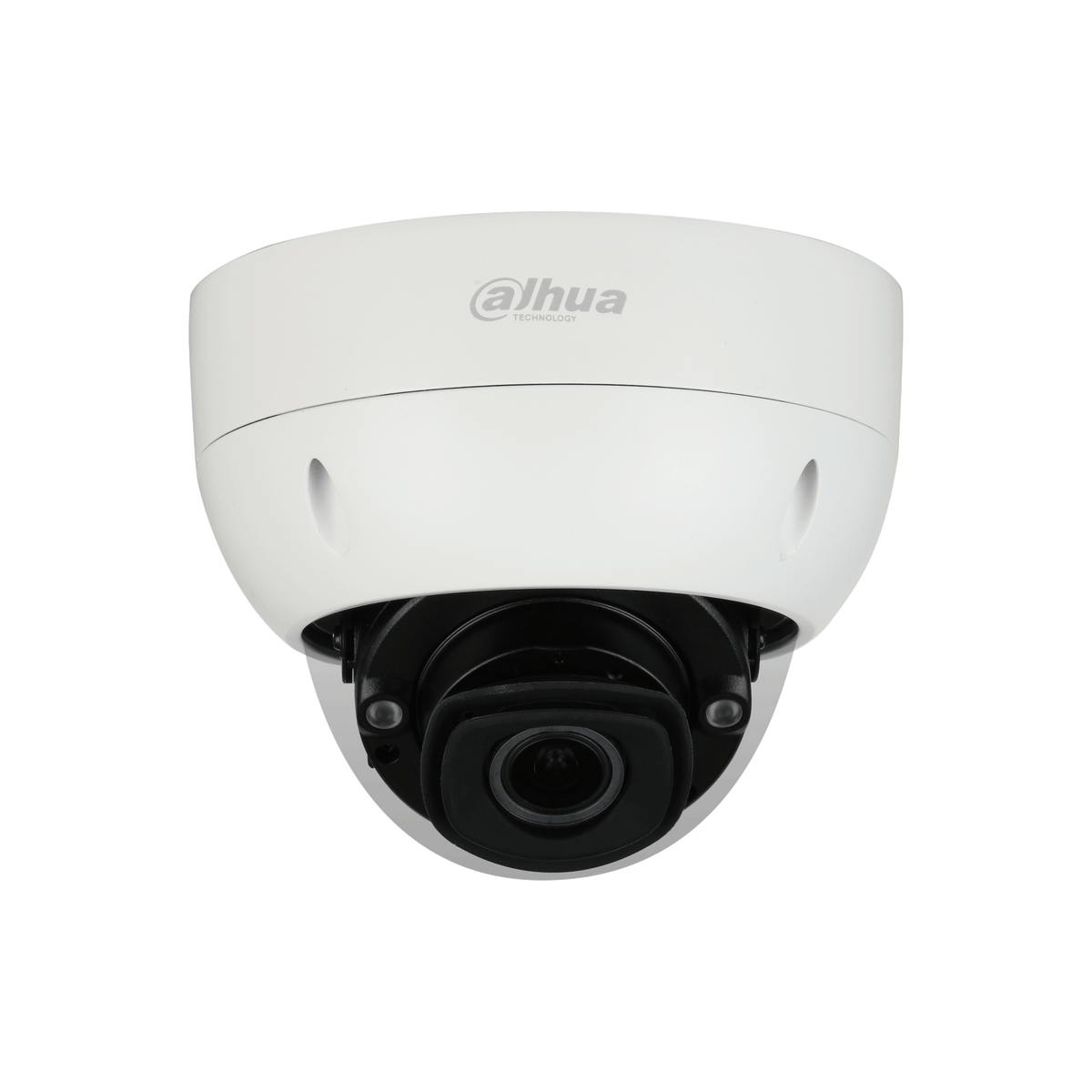

DAHUA IPC-HDBW5442H-Z4HE 4MP IR Vari-focal Dome WizMind Network Camera
IPC-HDBW5442H-Z4HE
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.
DAHUA SD49216UE-HN 2MP 16x Starlight IR PTZ Lite Network Camera
SD49216UE-HN
2MP 16x Starlight IR PTZ Lite Network Camera
> 1/2.8″ 2Megapixel STARVIS™ CMOS
> Powerful 16x optical zoom
> IR distance up to 100m
> Max. 25/30 fps@1080P
> IP66
> H.265

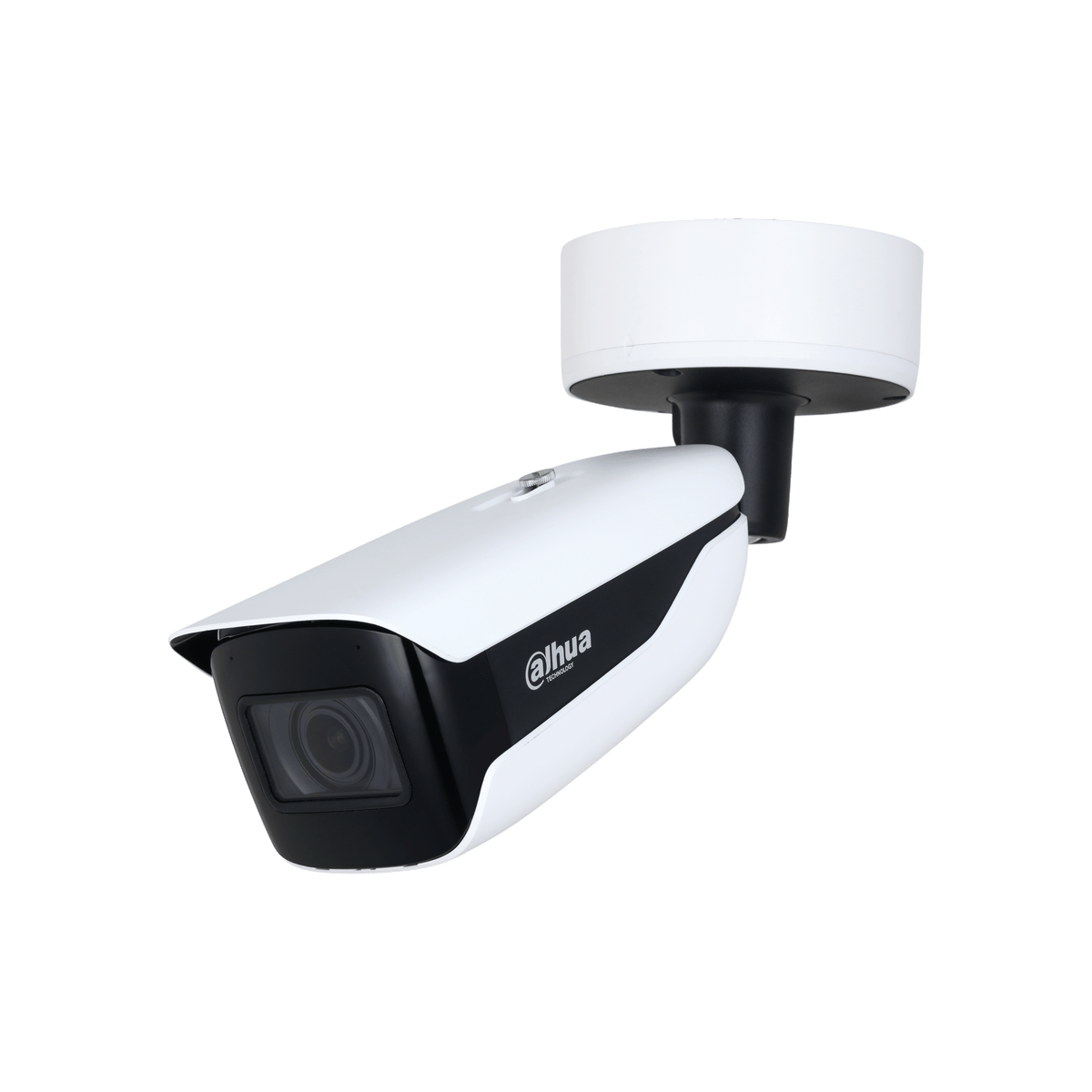

DAHUA IPC-HFW5442H-Z4HE 4MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5442H-Z4HE
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.

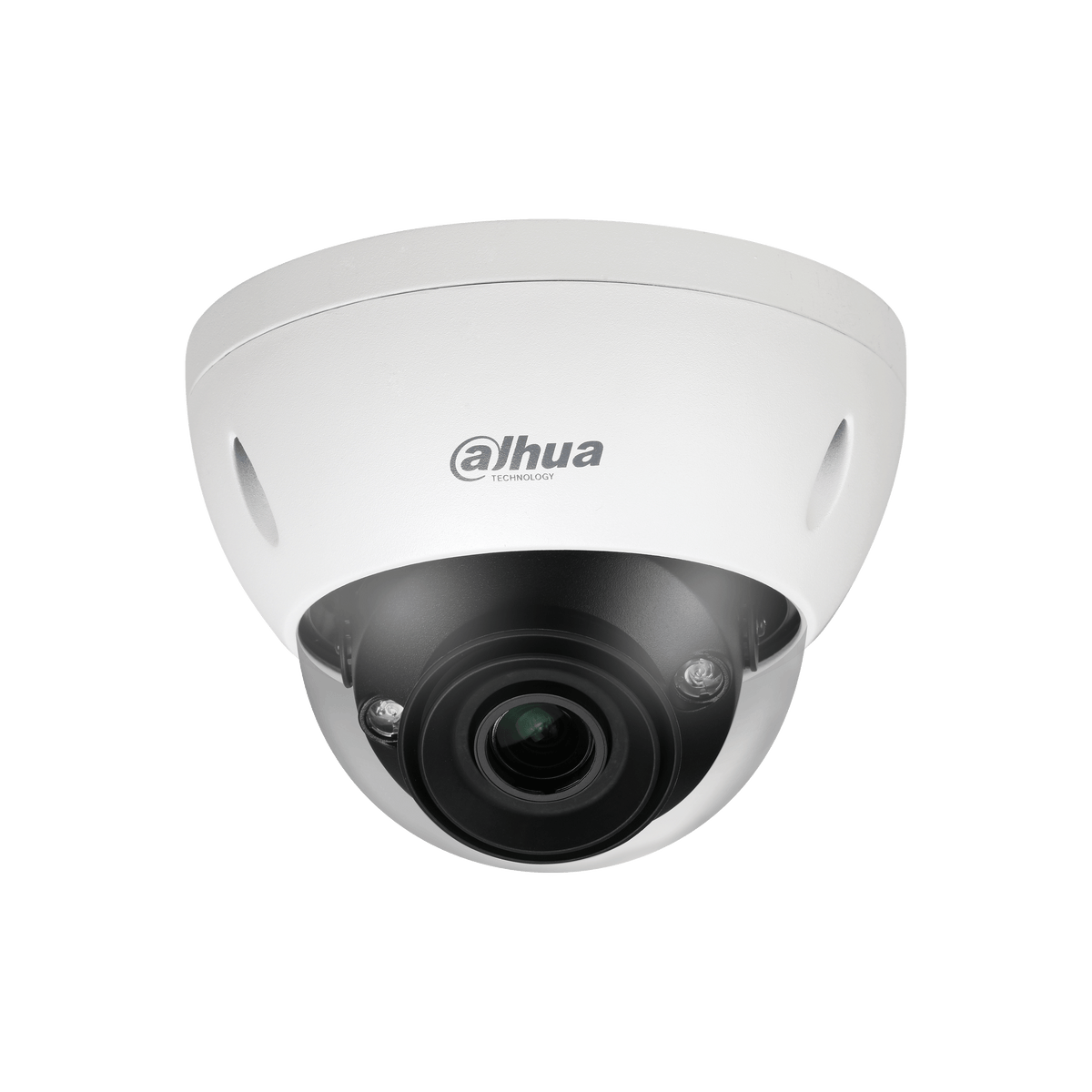

DAHUA IPC-HDBW5842E-Z4E 8MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
IPC-HDBW5842E-Z4E
8MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.

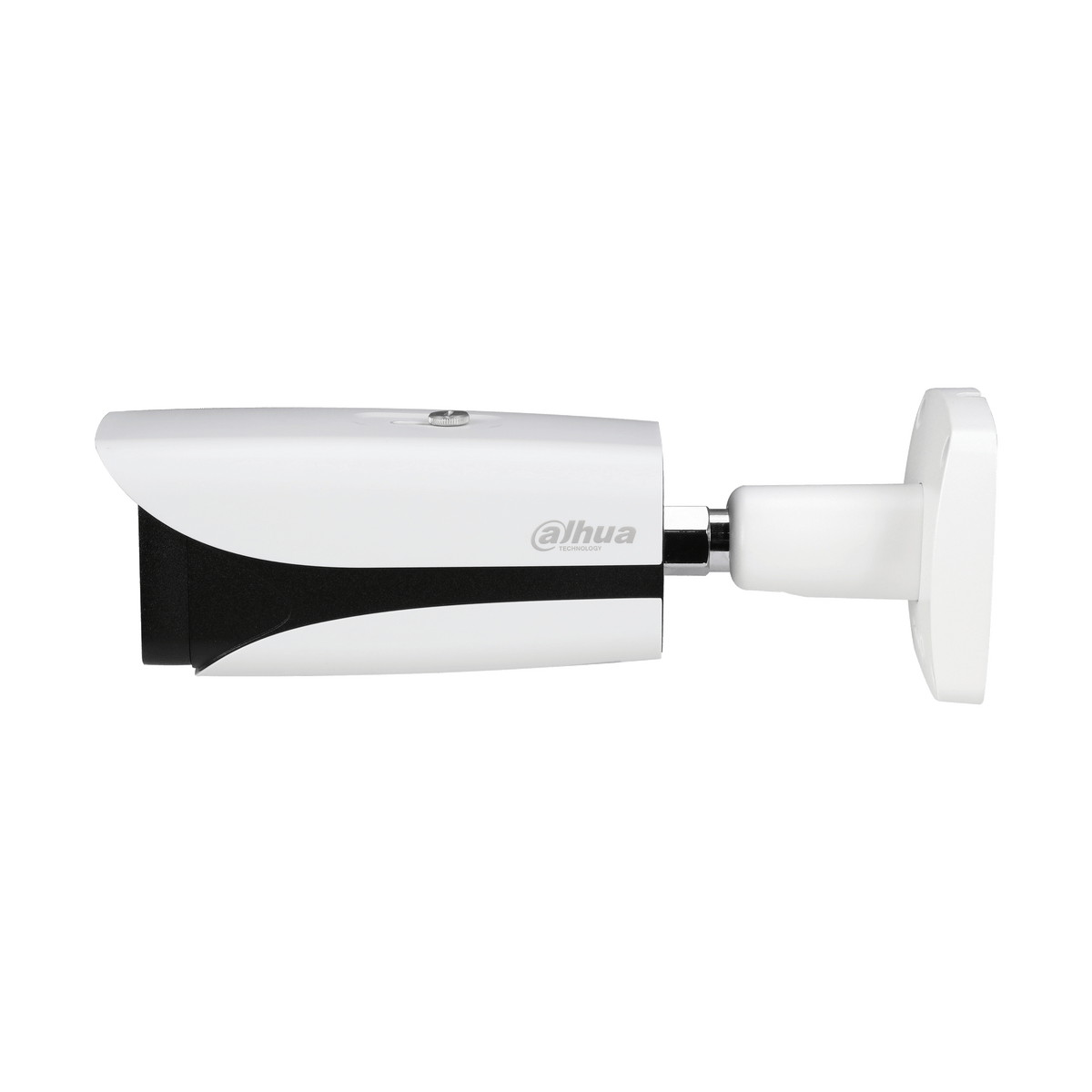

DAHUA IPC-HFW5842E-ZHE 8MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5842E-ZHE
8MP IR Vari-focal Bullet WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.

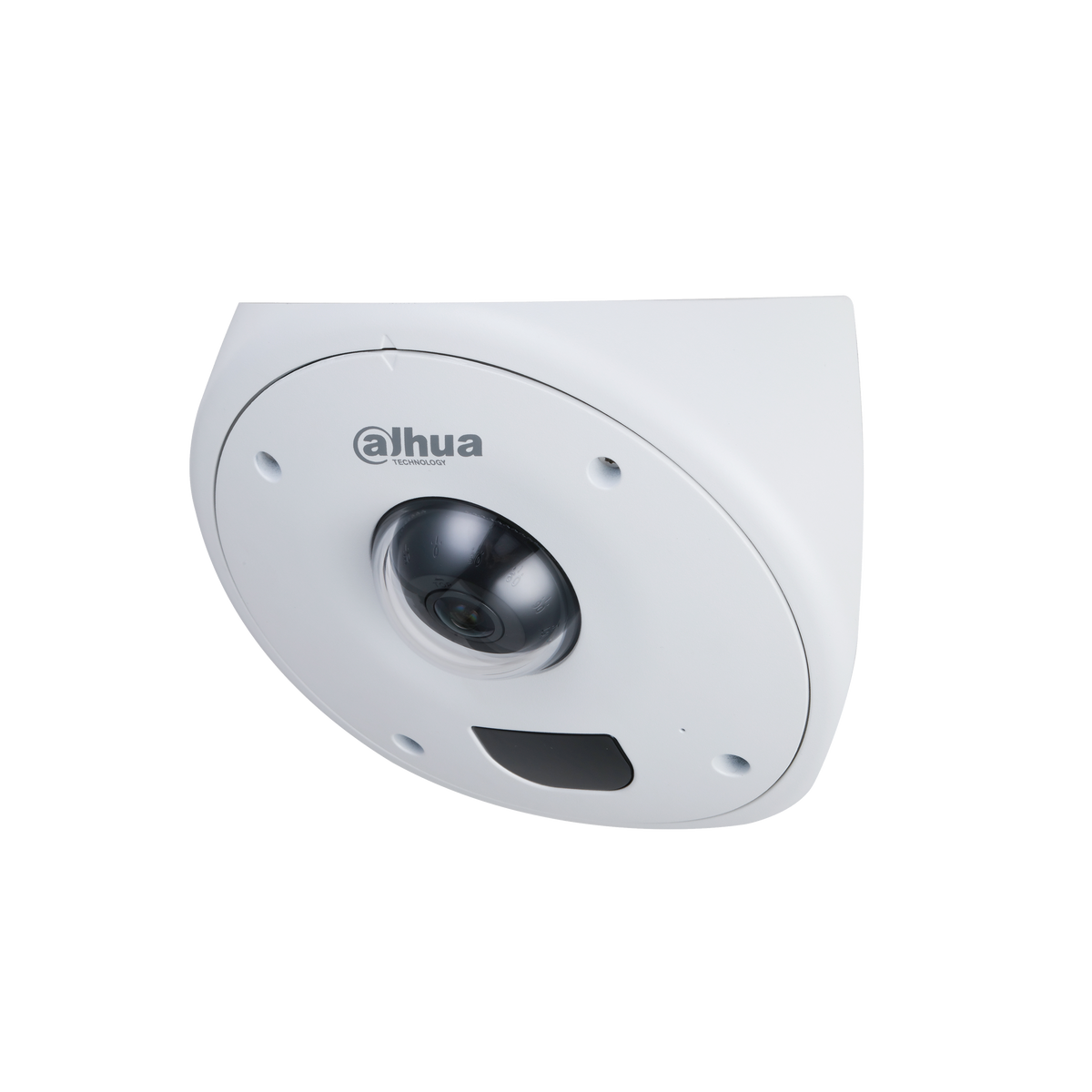

DAHUA IPC-HCBW8442 4MP WizMind Corner Network Camera
IPC-HCBW8442
> 1/1.8” 4Megapixel progressive scan CMOS
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> 25/30 fps@2688 × 1520
> WDR (140 dB), Day/Night (ICR), 3D NR, AWB, AGC, BLC
> 2.5 mm fixed lens, distortion correction
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 10 m
> IP67 and IK10+ (50J) protection

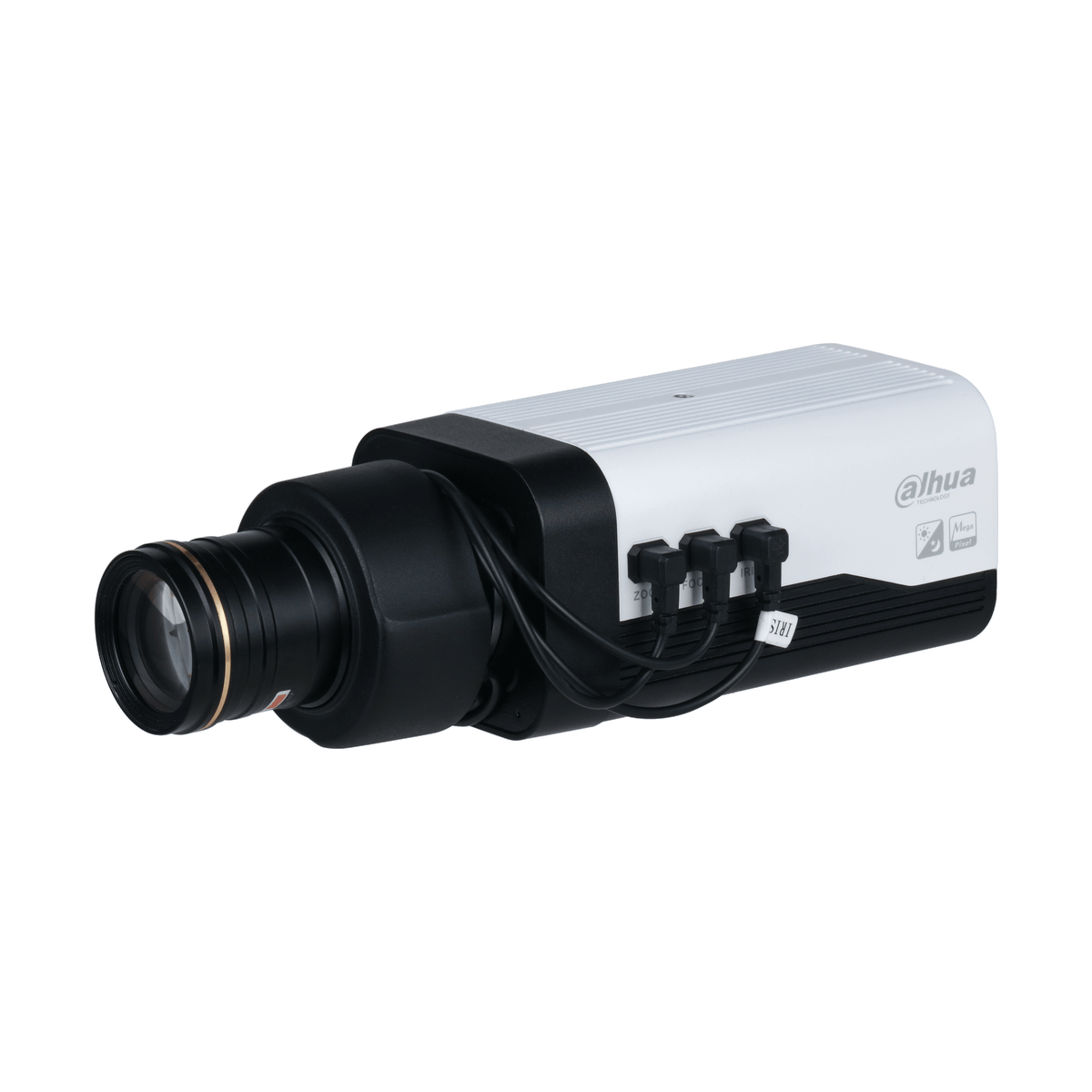

DAHUA IPC-HF7842F-Z-X 8MP BOX WizMind Network Camera
IPC-HF7842F-Z-X
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@50/60 fps.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
DAHUA IPC-HFW5842E-Z4E 8MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5842E-Z4E
8MP IR Vari-focal Bullet WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
DAHUA IPC-EBW8630 6MP Panoramic Network IR Fisheye Camera
IPC-EBW8630
6MP Panoramic Network IR Fisheye Camera
> H.265/H.264 triple-stream encoding
> Max 25/30fps@6M(3072×2048)
> Multiple dewarped Mode
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Smart detection
> Intelligent Function
> Max. IR LEDs length 10m
> Micro SD memory, IP67, IK10, PoE
DAHUA IPC-HF71242F-Z-X 12MP Box WizMind Network Camera
IPC-HF71242F-Z-X
12MP Box WizMind Network Camera
> 12-MP 1/1.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 12 MP (4000 × 3000)@25/30 fps.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
DAHUA IPC-HFW2431DG-4G-SP-EAU-B 4MP IR Fixed-focal Bullet 4G Solar Power Network Camera
IPC-HFW2431DG-4G-SP-EAU-B
> 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being lost.
> Supports solar power, making it ideal for use in locations that have exposure to sunlight.
> Standalone with built-in solar panel and battery, battery cycle life can last up to 10 days at the rate of 1-hour remote live view per day.
> Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access.
> Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
> IP67 protection.
DAHUA IPC-HFW2431DG-4G-SP-LA-B 4MP IR Fixed-focal Bullet 4G Solar Power Network Camera
IPC-HFW2431DG-4G-SP-LA-B
4MP IR Fixed-focal Bullet 4G Solar Power Network Camera
> 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being lost.
> Supports solar power, making it ideal for use in locations that have exposure to sunlight.
> Standalone with built-in solar panel and battery, battery cycle life can last up to 10 days at the rate of 1-hour remote live view per day.
> Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access.
> Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
> IP67 protection.
DAHUA IPC-HFW5849T1-ASE-LED 8MP Full-color Fixed-focal Warm LED Bullet WizMind Network Camera
IPC-HFW5849T1-ASE-LED
> 8-MP 1/1.2″ CMOS image sensor, low illuminance, high image definition.
> Outputs max. 8 MP (3840 × 2160) @30 fps.
> Built-in warm illuminator, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker; supports two-way talk.
> 12 VDC/PoE power supply.
> ePoE, IP67 protection.
> SMD 3.0.
DAHUA IPC-EBW81230 12MP Panoramic Network IR Fisheye Camera
IPC-EBW81230
> 1/1.7” 12Megapixel progressive scan STARVIS™ CMOS
> H.265/H.264 triple-stream encoding
> Max 25fps@12M(4000×3000)
> Multiple dewarped Mode
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Smart detection
> Intelligent Function
> Max. IR LEDs length 10m
> Micro SD memory, IP67, IK10, PoE
DAHUA IPC-HFW71242H-Z-X 12MP IR Bullet WizMind Network Camera
IPC-HFW71242H-Z-X
12MP IR Bullet WizMind Network Camera
> 12-MP 1/1.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 12 MP (4000 × 3000)@25/30 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection, Anti-Corrosion coating (optional).
DAHUA IPC-HF7442F-Z-X 4MP BOX WizMind Network Camera
IPC-HF7442F-Z-X
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
DAHUA IPC-HDW5849H-ASE-LED 8MP Full-color Fixed-focal Warm LED Eyeball WizMind Network Camera
IPC-HDW5849H-ASE-LED
> 8-MP 1/1.2″ CMOS image sensor, low illuminance, high image definition.
> Outputs max. 8 MP (3840 × 2160) @30 fps.
> Built-in warm light and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic.
> 12 VDC/PoE power supply.
> ePoE, IP67 protection.
> SMD 3.0.

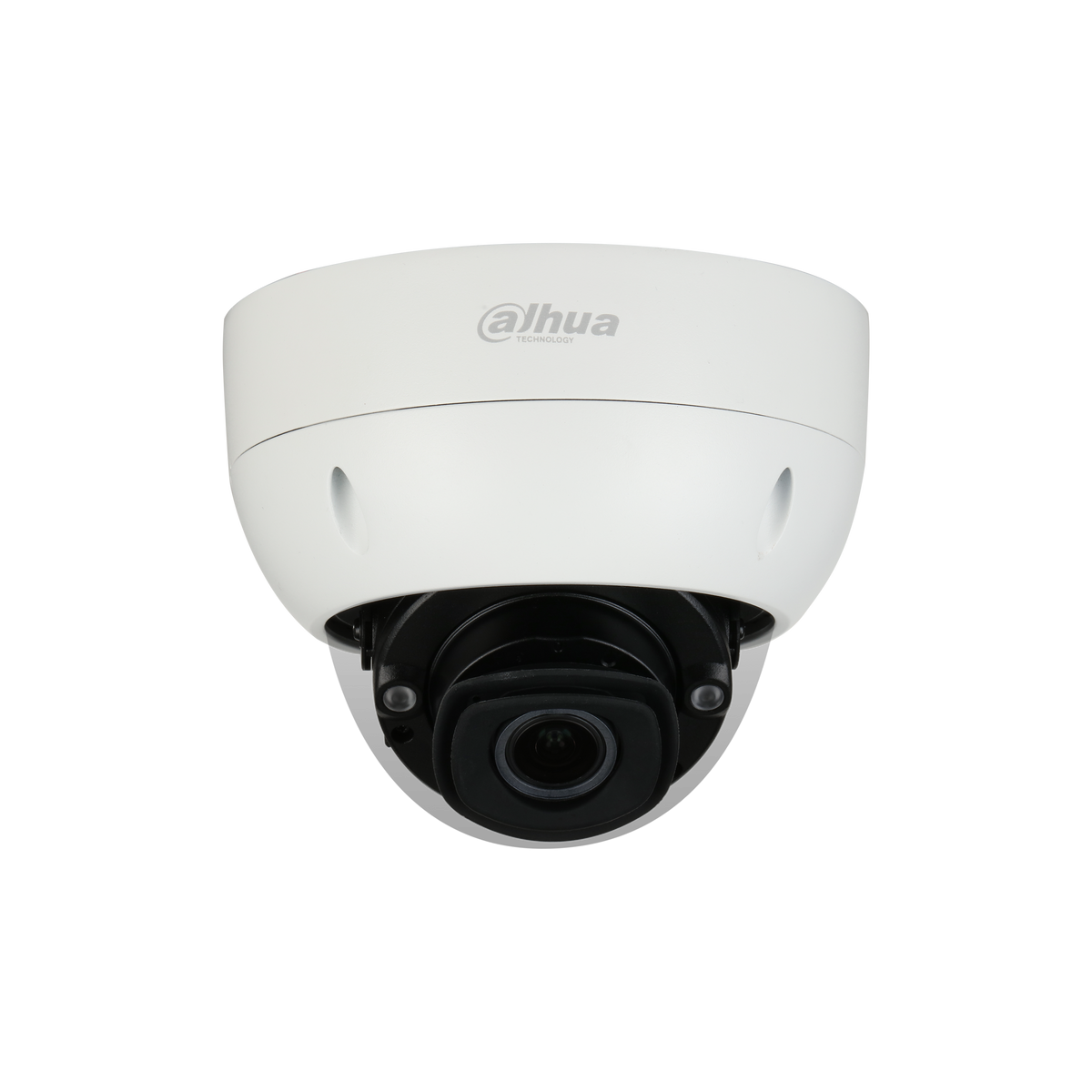

DAHUA IPC-HDBW7842H-Z4-S2 8MP IR Dome WizMind Network Camera
IPC-HDBW7842H-Z4-S2
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 80 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC, supports max. 256 G Micro SD card.
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12 VDC power output, max. current 165 mA , easy for installation
> Anti-corrosion coating (optional).
DAHUA IPC-HDBW5441F-AS-E2 2 ¡Á 4 MP Dual-Directional WizMind Network Camera
IPC-HDBW5441F-AS-E2
> Outputs max. 4 MP (2560 × 1440)@25/30 fps.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding,applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three people gathering, and parking detection.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, and face exposure.
> People counting: Queue management, people counting in area,(day/month/year).
> Dual-channel intelligence can be enabled at the same time and independent of each other.
> Supports dual-channel images previewed in the first channel, saving license costs.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SDcard; built-in MIC.
> 12 VDC/PoE power supply.
> IP67 and IK10.
> SMD 3.0.
DAHUA IPC-HDBW5842H-ZHE 8MP IR Vari-focal Dome WizMind Network Camera
IPC-HDBW5842H-ZHE
8MP IR Vari-focal Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.
DAHUA IPC-HFW5842H-ZHE 8MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5842H-ZHE
8MP IR Vari-focal Bullet WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160) @25/30 fps. · Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.
DAHUA IPC-HFW3441DG-AS-4G-EAU-B 4MP IR Fixed-focal Bullet WizSense 4G Network Camera
IPC-HFW3441DG-AS-4G-EAU-B
> 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being lost.
> Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
> IP67 protection.
DAHUA IPC-HFW3441DG-AS-4G-LA-B 4MP IR Fixed-focal Bullet WizSense 4G Network Camera
IPC-HFW3441DG-AS-4G-LA-B
> 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being lost.
> Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
> IP67 protection.
> SMD 3.0
DAHUA SD50225U-HNI 2MP 25x Starlight PTZ Network Camera
SD50225U-HNI
2MP 25x Starlight PTZ Network Camera
> Powerful 25x optical zoom
> H.265 Encoding
> Starlight technology
> Max. 50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IP67, IK10
DAHUA IPC-EBW81242-AS-S2 12MP IR Fisheye WizMind Network Camera
IPC-EBW81242-AS-S2
> Outputs max. 12M (4000 × 3000)@25 fps; supports 8M (3280 × 2480)@25/30 fps.
> Built-in IR LED, and the max. illumination distance is 10 m.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker.
> 12V DC/PoE power supply.
> IP67 and IK10 protection.
DAHUA IPC-HDBW7842H-Z-S2 8MP IR Dome WizMind Network Camera
IPC-HDBW7842H-Z-S2
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 40 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC, supports max. 256 G Micro SD card.
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12V DC power output, max. current 165mA , easy for installation
> Anti-corrosion coating(optional)
DAHUA IPC-PFW5849-A180-E2-ASTE 2¡Á4MP Full-color Duo Splicing WizMind Network Camera
IPC-PFW5849-A180-E2-ASTE
> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1800)@25 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 40 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD.
DAHUA IPC-HDBW7442H-Z4-S2 4MP IR Dome WizMind Network Camera
IPC-HDBW7442H-Z4-S2
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 80 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC, supports max. 256 G Micro SD card.
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12 VDC power output, max. current 165mA , easy for installation
> Anti-corrosion coating (optional).
DAHUA SD60225U-HNI 2MP 25x Starlight PTZ Network Camera
SD60225U-HNI
2MP 25x Starlight PTZ Network Camera
>Powerful 25x optical zoom
>Starlight technology
>H.265 Encoding
>Max. 50/60fps@1080P, 25/30/50/60fps@720P
>Auto-tracking and IVS
>Support PoE+
>IP67, IK10
DAHUA SD52C430U-HNI 4MP 30x PTZ Network Camera
SD52C430U-HNI
4MP 30x PTZ Network Camera
> Powerful 30x optical zoom
> H.265 Encoding
> Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IK10
DAHUA IPC-HFW7442H-Z4-S2 DAHUA IPC-HFW7442H-Z-S2 4MP IR Bullet WizMind Network Camera
IPC-HFW7442H-Z4-S2
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 120 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection, etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS485, BNC, supports max. 256 G Micro SD card
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12V DC power output, max. current 165mA , easy for installation
> Anti-corrosion coating (optional).
DAHUA IPC-HDBW5842H-Z4HE 8MP IR Vari-focal Dome WizMind Network Camera
IPC-HDBW5842H-Z4HE
8MP IR Vari-focal Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.
DAHUA IPC-HFW7842H-Z4-S2 8MP IR Bullet WizMind Network Camera
IPC-HFW7842H-Z4-S2
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 120 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS485, BNC, supports max. 256 G Micro SD card
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12V DC power output, max. current 165 mA , easy for installation
> Anti-corrosion coating(optional).
DAHUA IPC-HFW7442H-Z4-S2 4MP IR Bullet WizMind Network Camera
IPC-HFW7442H-Z4-S2
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 120 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection, etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS485, BNC, supports max. 256 G Micro SD card
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12V DC power output, max. current 165mA , easy for installation
> Anti-corrosion coating (optional).
DAHUA IPC-HFW5842H-Z4HE 8MP IR Vari-focal Bullet WizMind Network Camera
IPC-HFW5842H-Z4HE
8MP IR Vari-focal Bullet WizMind Network Camera
* The parameters and datasheets below can only be applied to 5842- Z-S3 series.
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 512 G Micro SD card, built-in dual MICs.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
> Anti-corrosion model optional.
DAHUA SD50430U-HNI 4MP 30x PTZ Network Camera
SD50430U-HNI
4MP 30x PTZ Network Camera
> Powerful 30x optical zoom
> H.265 Encoding
> Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IP67, IK10
DAHUA IPC-HFW7842H-Z4-S2 DAHUA IPC-HFW7842H-Z-S2 8MP IR Bullet WizMind Network Camera
IPC-HFW7842H-Z4-S2
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Built-in IR LED, and the max. illumination distance is 120 m.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports video metadata, face detection,face recognition,people counting, perimeter protection,etc.
> Supports P-Iris, the camera can control the iris more precisely for better image effect.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS485, BNC, supports max. 256 G Micro SD card
> 12 VDC/24 VAC/PoE power supply (the power ports are different depending on the power supply).
> IP67, IK10 protection grade.
> 12V DC power output, max. current 165 mA , easy for installation
> Anti-corrosion coating(optional).
DAHUA SD59225U-HNI 2MP 25x Starlight IR PTZ Network Camera
SD59225U-HNI
2MP 25x Starlight IR PTZ Network Camera
> Powerful 25x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IR distance up to 150m
> IP66
DAHUA IPC-EBW8842-AS 8MP IR Fisheye WizMind Network Camera
IPC-EBW8842-AS
> Outputs max. 8M (3280 × 2480) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 10 m.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker
> 12V DC/PoE power supply.
> IP67 and IK10 protection.
DAHUA IPC-HDBW8841H-Z-LB 8MP WizMind Classroom Network Camera
IPC-HDBW8841H-Z-LB
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Supports Classroom Behavior Analysis, including detection of abnormal number of people (for tracking teachers), standing, writing on the blackboard, back turned to students, head up, and walking.
> Supports Exam Behavior Analysis, including detection of students looking around and passing objects between each other.
> Sound Management: With its built-in dual MICs and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals in the classroom, adaptively reduce noise, and filter non-human voices.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 30 meters when used indoors.
> Supports two-way talk.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; built-in dual MICs, RS-485, BNC; supports max. 256 G Micro SD card.
> 24 VAC/12 VDC/PoE power supply, 12 VDC power output, and max. current 165 mA, easy for installation.
> 5 streams for 3-channel HD video display.
> IP67 and IK10 protection.
DAHUA IPC-HDBW8841H-Z4-LB 8MP WizMind Classroom Network Camera
IPC-HDBW8841H-Z4-LB
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Supports Classroom Behavior Analysis, including detection of abnormal number of people (for tracking teachers), standing, writing on the blackboard, back turned to students, head up, and walking.
> Supports Exam Behavior Analysis, including detection of students looking around and passing objects between each other.
> Sound Management: With its built-in dual MICs and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals in the classroom, adaptively reduce noise, and filter non-human voices.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 30 meters when used indoors.
> Supports two-way talk.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; built-in dual MICs, RS-485, BNC; supports max. 256 G Micro SD card.
> 24 VAC/12 VDC/PoE power supply, 12 VDC power output, and max. current 165 mA, easy for installation.
> 5 streams for 3-channel HD video display.
> IP67 and IK10 protection.
DAHUA IPC-HFW7442H-Z-X 4MP IR Bullet WizMind Network Camera
IPC-HFW7442H-Z-X
4MP IR Bullet WizMind Network Camera
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection.
> Anti-Corrosion coating(optional).
DAHUA IPC-HDBW7442E1-Z-X 4MP IR Dome WizMind Network CAMERA
IPC-HDBW7442E1-Z-X
4MP IR Dome WizMind Network CAMERA
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 20 meters.
> Sound Management: With its built-in dual MICs and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 512 G Micro SD card.
> Built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/24VAC/PoE+ (802.3at)/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection, Anti-Corrosion coating (optional).
DAHUA IPC-MFW7842K1-Z4-T20 8+2 MP Dual-Sight Bullet WizMind Network Camera
IPC-MFW7842K1-Z4-T20
> 8-MP 1/1.7″ CMOS image sensor and 2-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Built-in GPU chip and deep learning algorithm, which can improve the detection accuracy.
> Switch among five intelligent resources: IVS, face detection, video metadata, people counting and face recognition.
> Built-in warm light/IR LED that has a maximum IR illumination distance of 100 m and warm light distance of 60 m.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> Designed with the Dahua Noise Reduction Algorithm and built-in dual microphones, the device performs active noise control, eliminating noise of wind scale 3. It has a pick-up distance up to 20 m.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 30 m when used indoors.
> Sound and light alarms are generated when an alarm is triggered.
> 12 VDC/PoE power supply, 12 VDC power output, max. current 165 mA, easy for installation.
> IP67 protection.
DAHUA IPC-HFW7842H-Z-X 8MP IR Bullet WizMind Network Camera
IPC-HFW7842H-Z-X
8MP IR Bullet WizMind Network Camera
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@50/60 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection.
> Anti-Corrosion coating(optional).
DAHUA IPC-HDBW7842E1-Z-X 8MP IR Dome WizMind Network CAMERA
IPC-HDBW7842E1-Z-X
8MP IR Dome WizMind Network CAMERA
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@50/60 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection:Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 20 meters.
> Sound Management: With its built-in dual MICs and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 512 G Micro SD card.
> Built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/24VAC/PoE+ (802.3at)/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection, Anti-Corrosion coating (optional).
DAHUA IPC-HDBW7442E1-Z4-X 4MP IR Dome WizMind Network Camera
IPC-HDBW7442E1-Z4-X
4MP IR Dome WizMind Network Camera
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@50/60 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 20 meters.
> Sound Management: With its built-in dual MICs and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 512 G Micro SD card.
> Built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/24VAC/PoE+ (802.3at)/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection, Anti-Corrosion coating (optional).
DAHUA IPC-EB81242-PD Parking Space Detection Fisheye WizMind Network Camera
IPC-EB81242-PD
Parking Space Detection Fisheye WizMind Network Camera
> Support up to 12 parking space status detection.
> 360° panoramic view without dead angles in its monitoring range, making it cost-effective.
> Outputs max. 3008 × 3000@20 fps.
> 7 indicator colors that can be customized to display the status of parking spaces.
> H.265 codec, high compression rate, ultra-low bit rate.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> DWDR, ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply, 12 VDC power output, and max. current 165 mA, easy for installation.
> IP67 protection.
DAHUA IPC-MFW7442K1-Z4-T40 4+4 MP Dual-Sight Bullet WizMind Network Camera
IPC-MFW7442K1-Z4-T40
> 4-MP 1/1.7″ CMOS image sensor and 4-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Built-in GPU chip and deep learning algorithm, which can improve the detection accuracy.
> Switch among five intelligent resources: IVS, face detection, video metadata, people counting and face recognition, Channel 1 support only.
> Built-in warm light/IR LED that has a maximum IR illumination distance of 100 m and warm light distance of 60 m.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> Designed with the Dahua Noise Reduction Algorithm and built-in dual microphones, the device performs active noise control, eliminating noise of wind scale 3. It has a pick-up distance up to 20 m.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 30 m when used indoors.
> Sound and light alarms are generated when an alarm is triggered.
> 12 VDC/PoE power supply, 12 VDC power output, max. current 165 mA, easy for installation.
> IP67 protection.
DAHUA SDZW2000T-SL 2MP Anti-corrosion IR Network Camera
SDZW2000T-SL
2MP Anti-corrosion IR Network Camera
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> IVS
> IP68, IK10, NEMA 4X
> Material: 316L Stainless Steel
DAHUA IPC-HFW7842H-Z4-X 8MP IR Bullet WizMind Network Camera
IPC-HFW7842H-Z4-X
8MP IR Bullet WizMind Network Camera
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@50/60 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection.
> Anti-Corrosion coating(optional).
DAHUA IPC-HDBW7842E1-Z4-X 8MP IR Dome WizMind Network CAMERA
IPC-HDBW7842E1-Z4-X
8MP IR Dome WizMind Network CAMERA
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@50/60 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 20 meters.
> Sound Management: With its built-in dual MICs and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 512 G Micro SD card.
> Built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/24VAC/PoE+ (802.3at)/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection, Anti-Corrosion coating (optional).
DAHUA IPC-HDBW71242E1-Z-X 12MP IR Dome WizMind Network Camera
IPC-HDBW71242E1-Z-X
12MP IR Dome WizMind Network Camera
> 12-MP 1/1.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 12 MP (4000 × 3000)@25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.
> Sound Management: With its built-in dual MICs and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.
> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 20 meters.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.
> Built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/24VAC/PoE+ (802.3at)/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.
> IP67 and IK10 protection, Anti-Corrosion coating (optional).
DAHUA IPC-MFW7442K1-Z7-T40 4+4MP Dual-Sight Bullet WizMind Network Camera
IPC-MFW7442K1-Z7-T40
> 4-MP 1/1.7″ CMOS image sensor and 4-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Built-in GPU chip and deep learning algorithm, which can improve the detection accuracy.
> Switch among five intelligent resources: IVS, face detection, video metadata, people counting and face recognition.
> Built-in warm light/IR LED that has a maximum IR illumination distance of 120 m and warm light distance of 80 m.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC;supports max. 256 G Micro SD card.
> Designed with the Dahua Noise Reduction Algorithm and built-in dual microphones, the device performs active noise control, eliminating noise of wind scale 3. It has a pick-up distance up to 20 m.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 30 m when used indoors.
> Sound and light alarms are generated when an alarm is triggered.
> 12 VDC/PoE power supply, 12 VDC power output, max. current 165 mA, easy for installation.
> IP67 protection.
DAHUA SD60230U-HNI 2MP 30x Starlight PTZ Network Camera
SD60230U-HNI
2MP 30x Starlight PTZ Network Camera
> Powerful 30x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P, 25/30/50/60fps@720P
> Auto-tracking and IVS
> Support PoE+
> IP67, IK10
DAHUA SD50230U-HNI 2MP 30x Starlight PTZ Network Camera
SD50230U-HNI
2MP 30x Starlight PTZ Network Camera
> Powerful 30x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IP67, IK10
DAHUA IPC-MFW7842K1-Z7-T20 8+2 MP Dual-Sight Bullet WizMind Network Camera
IPC-MFW7842K1-Z7-T20
> 8-MP 1/1.7″ CMOS image sensor and 2-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Built-in GPU chip and deep learning algorithm, which can improve the detection accuracy.
> Switch among five intelligent resources: IVS, face detection, video metadata, people counting and face recognition.
> Built-in warm light/IR LED that has a maximum IR illumination distance of 120 m and warm light distance of 80 m.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> Designed with the Dahua Noise Reduction Algorithm and built-in dual microphones, the device performs active noise control, eliminating noise of wind scale 3. It has a pick-up distance up to 20 m.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 30 meters when used indoors.
> Sound and light alarms are generated when an alarm is triggered.
> 12 VDC/PoE power supply, 12 VDC power output, max. current 165 mA, easy for installation.
> IP67 protection.
DAHUA SDZ4032-HNR-ZB 4MP 32x Starlight Zoom Network Camera
SDZ4032-HNR-ZB
4MP 32x Starlight Zoom Network Camera
> Starlight technology
> H.265 encoding
> Perimeter protection
> Face detection
> Smart capture
> Supports PoE
DAHUA IPC-PFW81642-A180 4 ¡Á 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera
IPC-PFW81642-A180
> Outputs max. 16 MP (5520 × 2700)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Three streams for HD video display.
> Built-in IR LED, and the max. illumination distance is 30 m.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> 12 VDC/24 VAC/PoE power supply, easy for installation.
> IP67 and IK10 protection.
DAHUA ECA3A1804-HNR-XB 8MP Explosion-proof IR Bullet WizMind Network Camera
ECA3A1804-HNR-XB
8MP Explosion-proof IR Bullet WizMind Network Camera
> 8-MP 1/2.8″ CMOS image sensor, low illuminance, high image definition.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: face detection, perimeter protection, people counting, heat map, SMD4.0.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 512 G Micro SD card.
> 12 VDC/PoE power supply, easy for installation.
> 304/316L stainless steel casing, 2 m cable.
> IP68 protection.
DAHUA SD6CE245U-HNI 2MP 45x Starlight IR PTZ Network Camera
SD6CE245U-HNI
2MP 45x Starlight IR PTZ Network Camera
> Powerful 45x optical zoom
> Starlight technology
> Max. 50/60fps@1080P
> Auto-tracking and IVS
> IR distance up to 250m
> Support PoE+
> IP67, IK10
DAHUA IPC-PDBW5831-B360 4 ¡Á 2 MP 4-Directional Panoramic Dome Network Camera
IPC-PDBW5831-B360
4 × 2 MP 4-Directional Panoramic Dome Network Camera
> H.265&H.264 dual-stream encoding
> 25/30fps@2M(1920×1080)
> Smart Detection supported
> WDR(140dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm~12mm motorized lens
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, PoE+
DAHUA SD52C230U-HNI 2MP 30x Starlight PTZ Network Camera
SD52C230U-HNI
2MP 30x Starlight PTZ Network Camera
> Powerful 30x optical zoom
> Starlight technology
> H.265 Encoding
> Max. 50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IK10
DAHUA IPC-EBW81242-AS-IVC-S2 12MP IR Fisheye WizMind Network Camera with Panomorph Lens
IPC-EBW81242-AS-IVC-S2
> Outputs max. 12M (4000 × 3000)@25 fps; supports 8M (3280 × 2480)@25/30 fps
> Built-in IR LED, and the max. illumination distance is 10 m.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker
> 12V DC/PoE power supply.
> IP67 and IK10 protection.
> Adopts Panomorph lens, having better compatibility with third party platform
> Panomorph Lens RPL: B9VVT.
DAHUA IPC-PDBW82041-B360-S2 4 ¡Á 5 MP 4-Directional Panoramic Dome Wizmind Network Camera
IPC-PDBW82041-B360-S2
> 4-channel stream output, and each channel can output max. 5 MP (2592 × 1944) @25/30 fps.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting.
> Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection.
> FlexStream: The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel.
> Web5.0 interface design, which is friendly to users, and easy for operation.
> Built-in IR LED illuminator, and the max. illumination distance is 30 m.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.
> IP67 and IK10 protection.
> Anti-corrosion protection (optional).
DAHUA IPC-HDBW8232E-Z-SL 2MP Starlight Anti-Corrosion IR Dome Network Camera
IPC-HDBW8232E-Z-SL
2MP Starlight Anti-Corrosion IR Dome Network Camera
> H.265&H.264 triple-stream encoding
> 50/60fps@1080P(1920×1080)
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4.1mm ~16.4mm motorized lens
> Max. IR LEDs Length 50m
> Micro SD memory,IP67,IK10,POE+
> 316L stainless steel housing
DAHUA SD60430U-HNI 4MP 30x PTZ Network Camera
SD60430U-HNI
4MP 30x PTZ Network Camera
> Powerful 30x optical zoom
> H.265 Encoding
> Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IP67, IK10
DAHUA SD6AL245U-HNI-IR 2MP 45x Starlight IR PTZ Network Camera
SD6AL245U-HNI-IR
2MP 45x Starlight IR PTZ Network Camera
> Powerful 45x optical zoom
> Max. 50/60fps@1080P
> Auto tracking and IVS
> Support Hi-PoE
> IR distance up to 300m
> IP67
DAHUA IPC-HDEW8441R-Z 4MP Explosion Proof IR Dome WizMind Network Camera
IPC-HDEW8441R-Z
* The parameters and datasheets below can only be applied to 8441-S2 series.
> 4-MP 1/3.0″ CMOS image sensor, low illuminance, high image definition.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Supports the AFSA(Anti-flicker Self-adaption) function, which automatically eliminates flicker.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, face exposure, and face attributes.
> People counting: People counting in area, queue management, and entered/exited people counting; generating and exporting report (day/ month/year).
> Intelligent monitoring: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human). abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, and face detection.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply, easy for installation.
> IP68 and IK10 protection.
> Explosion-proof mark II 2 G Ex db IIC T6/T5 Gb; II 2 D Ex tb IIIC T80°C/ T100°C Db.
> 316 stainless steel casing, 2 m cable.
> ATEX and IECEx Certifacation.
> SMD 3.0.
DAHUA IPC-HDEW8841R-Z 4MP Explosion Proof IR Dome WizMind Network Camera
IPC-HDEW8841R-Z
8MP Explosion Proof IR Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 8841-S2 series.
> 8-MP 1/2.8″ CMOS image sensor, low illuminance, high image definition.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Supports the AFSA(Anti-flicker Self-adaption) function, which automatically eliminates flicker.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, face exposure, and face attributes.
> People counting: People counting in area, queue management, and entered/exited people counting; generating and exporting report (day/ month/year).
> Intelligent monitoring: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, and face detection.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply, easy for installation.
> IP68 and IK10 protection.
> Explosion-proof mark II 2 G Ex db IIC T6/T5 Gb; II 2 D Ex tb IIIC T80°C/ T100°C Db.
> 316 stainless steel casing, 2 m cable.
> ATEX and IECEx Certifacation.
> SMD 3.0.
DAHUA IPC-HFW5842DK1-Z-5G Dahua 8MP 5G Vari-focal Bullet WizMind Network Camera
IPC-HFW5842DK1-Z-5G
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, and the max. illumination of IR distance is 60 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC, supports max. 512 G Micro SD card; built-in dual MICS and speaker, support two-way talk.
> 12 VDC power supply.
> 12 VDC power output, and max. current 165 mA, easy for installation.
> Supports multiple frequency bands for 5G that make it convenient to install and connect to the network.
> IP67 Protection.
> SMD 4.0.
DAHUA IPC-HFW5842DK1-Z4-5G Dahua 8MP 5G Vari-focal Bullet WizMind Network Camera
IPC-HFW5842DK1-Z4-5G
> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, and the max. illumination of IR distance is 120 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485, BNC, supports max. 512 G Micro SD card; built in dual MICs and speaker.
> 12 VDC power supply.
> 12 VDC power output, and max. current 165 mA, easy for installation.
> Supports multiple frequency bands for 5G that make it convenient to install and connect to the network.
> IP67 Protection.
> SMD 4.0
DAHUA IPC-EBW8842-AS-IVC 8MP IR Fisheye WizMind Network Camera with Panomorph Lens
IPC-EBW8842-AS-IVC
> Outputs max. 8M (3280 × 2480) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 10 m.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker
> 12V DC/PoE power supply.
> IP67 and IK10 protection.
> Adopts Panomorph lens, having better compatibility with third party platform.
> Panomorph Lens RPL: B9VVT.
DAHUA IPC-PFW83242-A180-S2 4 ¡Á 8 MP Multi-Sensor Panoramic Bullet WizMind Network Camera
IPC-PFW83242-A180-S2
> 4 × 8MP, 1/1.8″ CMOS image sensor, low illuminance, high image definition
> Outputs max. 32MP (8192 × 3840) @25/30 fps; with intelligent functions enabled, it can output 32MP (8192 × 3840) @20 fps
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Intelligent functions: Crowd Distribution Map, Vehicle Density, Perimeter Protection, EPTZ.
> Support image correction.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256G SD card.
> 12 VDC/24 VAC/PoE power supply; easy for installation
> IP67 and IK10 protection
> AR panorama technology; various AR tags can be overlaid.
DAHUA IPC-MFW7449Y-Z7-T44 4+4MP Dual-Sight Polarlight Bullet WizMind Network Camera
IPC-MFW7449Y-Z7-T44
> 2 lenses and 2 channels are integrated into the design.
> Adopts advanced technologies such as Hyper DoF, Illumination by Area, to achieve full coverage of different speed targets with a larger DoF distance under low illumination.
> Flexible remote debugging through the Dual-micro PTZ.
> Dual channels: 4-MP 1/1.8″ CMOS image sensors, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@25/30fps.
> Built-in efficient illuminator of dual light fusion, and the max. illumination distance is 150 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Multiple intelligent resources switchable.
> Channel 1: IVS, Face recognition, Face detection and Video metadata,
> Channel 2: IVS, Face recognition, Face detection, Video metadata, Crowd distribution map and People counting.
> Intelligent functions of Channel 1 and Channel 2 can be enabled at the same time.
> Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.
> Time-Division Exposure that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.
> 12 VDC power supply, easy for installation.
> IP67 protection.
DAHUA SD6AL245U-HNI 2MP 45x Starlight Laser PTZ Network Camera
SD6AL245U-HNI
2MP 45x Starlight Laser PTZ Network Camera
> Powerful 45x optical zoom
> Max. 50/60fps@1080P
> Auto tracking and IVS
> Support Hi-PoE
> IR distance up to 550m
> IP67
DAHUA IPC-MFW7449Y-Z7-T8A 4+8MP Dual-Sight Polarlight Bullet WizMind Network Camera
IPC-MFW7449Y-Z7-T8A
> 3 lenses and 2 channels are integrated into the design.
> Adopts advanced technologies such as Hyper DoF, Illumination by Area, to achieve full coverage of different speed targets with a larger DoF distance under low illumination.
> Flexible remote debugging through the Dual-micro PTZ.
> Two channels: Channel 1: 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image. Channel 2: Dual 4-MP 1/1.8″ CMOS image sensors, low luminance, and high definition image.
> Outputs max. 8 MP (4976 × 1450)@25/30 fps.
> Built-in efficient illuminator of dual light fusion, and the max. illumination distance is 150 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Multiple intelligent resources switchable: Channel 1: IVS, face recognition, face detection and video metadata. Channel 2: IVS, crowd distribution map and People counting.
> Intelligent functions of Channel 1 and Channel 2 can be enabled at the same time. (except Video metadata & Crowd distribution map).
> Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> Panoramic splicing: up to 180° panoramic angle meets the requirement of broad scenarios.
> Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.
> 12 VDC power supply, easy for installation.
> IP67 protection.
DAHUA IPC-HFS8449G-Z7-LED 4MP High Temperature Tolerance WizMind Network Camera
IPC-HFS8449G-Z7-LED
> The intelligent temperature control system automatically opens and closes based on the ambient temperature, making the device suitable for environments with high-temperatures such as steel plants and boiler plants.
> Works 24/7 in an environment that is 75°C (167°F), and works continuously for 12 hours in 85°C (185°F).
> Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> Ghosting Diminishment: Motion blur does not occur when objects are moving at night with WDR enabled.
> Built-in GPU chips and deep learning algorithm, which can improve the detection accuracy.
> Five switchable intelligent resources: Video Metadata, face detection, face recognition, face statistics and perimeter protection.
> Five streams for three-channel HD video display.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> 100–240 VAC power supply, easy for installation.
> IP67 protection.
DAHUA IPC-MFW7849Y-Z4-T44 8+4MP Dual-Sight Polarlight Bullet WizMind Network Camera
IPC-MFW7849Y-Z4-T44
> 2 lenses and 2 channels are integrated into the design.
> Adopts advanced technologies such as Hyper DoF, Illumination by Area, to achieve full coverage of different speed targets with a larger DoF distance under low illumination.
> Flexible remote debugging through the Dual-micro PTZ.
> Dual channels: Channel 1: 8-MP 1/1.2″ CMOS image sensor, low luminance, and high definition image. Channel 2: 4-MP 1/1.8″ CMOS image sensors, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Built-in efficient illuminator of dual light fusion, and the max. illumination distance is 120 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Multiple intelligent resources switchable: Channel 1: IVS, Face recognition, Face detection and Video metadata, Channel 2: IVS, Face recognition, Face detection, Video metadata, Crowd distribution map and People counting.
> Intelligent functions of Channel 1 and Channel 2 can be enabled at the same time.
> Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.
> Time-Division Exposure ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.
> 12 VDC power supply, easy for installation.
> IP67 protection.
DAHUA IPC-MFW7849Y-Z4-T8A 8+8MP Dual-Sight Polarlight Bullet WizMind Network Camera
IPC-MFW7849Y-Z4-T8A
> 3 lenses and 2 channels are integrated into the design.
> Adopts advanced technologies such as Hyper DoF, Illumination by Area, to achieve full coverage of different speed targets with a larger DoF distance under low illumination.
> Flexible remote debugging through the Dual-micro PTZ.
> Two channels: Channel 1: 8-MP 1/1.2″ CMOS image sensor, low luminance, and high definition image. Channel 2: Dual 4-MP 1/1.8″ CMOS image sensors, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Multiple intelligent resources switchable: Channel 1: IVS, face recognition, face detection and video metadata. Channel 2: IVS, crowd distribution map and People counting.
> Intelligent functions of Channel 1 and Channel 2 can be enabled at the same time. (except Video metadata & Crowd distribution map).
> Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> Panoramic splicing: up to 180° panoramic angle meets the requirement of broad scenarios.
> Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.
> 12 VDC power supply, easy for installation.
> IP67 protection.
CCTV-MALL SD8A840XA-HNP-WP 8MP 40x Starlight WizMind Hydrological Monitoring Network Camera
SD8A840XA-HNP-WP
8MP 40x Starlight WizMind Hydrological Monitoring Network Camera
> Powerful 40x optical zoom
> IR distance up to 250 m
> Max. 25/30 fps@4K
> Water level marker detection and calibration
> Water level marker joining
> Boat detection
> IP67
DAHUA SD8A840XA-HNP-WP 8MP 40x Starlight WizMind Hydrological Monitoring Network Camera
SD8A840XA-HNP-WP
> Powerful 40x optical zoom
> IR distance up to 250 m
> Max. 25/30 fps@4K
> Water level marker detection and calibration
> Water level marker joining
> Boat detection
> IP67
DAHUA SD8A840-HNF-PA 8MP 40x Starlight IR PTZ AI Network Camera
SD8A840-HNF-PA
> Powerful 40x optical zoom
> Starlight technology
> Perimeter protection
> Metadata
> Face Recognition
> Auto-tracking
> Smart wiper
> IP67
DAHUA IPC-HFS8849G-Z3-LED 8MP High Temperature Tolerance WizMind Network Camera
IPC-HFS8849G-Z3-LED
> The intelligent temperature control system automatically opens and closes based on the ambient temperature, making the device suitable for environments with high-temperatures such as steel plants and boiler plants.
> Works 24/7 in an environment that is 75°C (167°F), and works continuously for 12 hours in 85°C (185°F).
> Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.
> Time-Division Exposure technology ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
> Built-in GPU chips and deep learning algorithm, which can improve the detection accuracy.
> Five switchable intelligent resources: Video Metadata, face detection, face recognition, face statistics and perimeter protection.
> Five streams for three-channel HD video display.
> 8-MP 1/1.2″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> 100–240 VAC power supply, easy for installation.
> IP67 protection.
DAHUA SD8A440-HNF-PA(onlyforUAE) 4MP 40x Starlight IR PTZ AI Network Camera
SD8A440-HNF-PA(only for UAE)
4MP 40x Starlight IR PTZ AI Network Camera
> Powerful 40x optical zoom
> Starlight+ technology
> Perimeter protection
> Metadata
> Face Recognition
> Auto-tracking
> Smart wiper
> IP67
DAHUA SD8A440-HNF-PA 4MP 40x Starlight IR PTZ AI Network Camera
SD8A440-HNF-PA
4MP 40x Starlight IR PTZ AI Network Camera
> Powerful 40x optical zoom
> Starlight+ technology
> Perimeter protection
> Metadata
> Face Recognition
> Auto-tracking
> Smart wiper
> IP67
DAHUA PSDW8842S-A180-D425 8 MP Multi-Sensor 180¡ã Panoramic PTZ Mini Hubble Wizmind Network Camera
PSDW8842S-A180-D425
> Panoramic parameters: 4 × 2 MP 1/1.8″ CMOS image sensors.
PTZ parameters: 1 × 4 MP 1/1.8″ CMOS image sensors.
> PTZ camera: Built-in laser illuminator, max. illumination distance: 100 m.
> H.265 codec, high compression rate, ultra-low bit rate.
> WDR, 3D NR, HLC, BLC, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Smart tracking.
> Built-in dual MICs, built-in speaker, support two way-talk.
> Intelligent Functions: Panoramic Network Camera: Perimeter Protection; PTZ Camera: Perimeter Protection, Face Detection and Video Metadata.
DAHUA SD8A440-HNT-WA 4MP 40x Starlight WizMind Traffic Parking Network Camera
SD8A440-HNT-WA
4MP 40x Starlight WizMind Traffic Parking Network Camera
> 1/1.8″ 4Megapixel STARVIS™ CMOS
> Powerful 40x optical zoom
> Starlight technology
> Max. 2560 × 1440@30 fps
> Automatically captures pictures of illegal parking events in the specified area
> Built-in ANPR engine, equipped with deep learning algorithm application
> Supports multiple tour modes to improve capture efficiency
> Supports connecting the speaker to use reminder functions such as voice broadcast of license plate number, and voice talk
> Continuous 360° horizontal rotation, –30° to 90° vertical rotation, and auto flip 180°; no blind zone
> IP67
> IR distance up to 500 m
> Auto-iris
DAHUA PSDW81642S-A360-D425 16 MP Multi-Sensor 360¡ã Panoramic PTZ Mini Hubble Wizmind Network Camera
PSDW81642S-A360-D425
> Panoramic parameters: 8 × 2 MP 1/1.8″ CMOS image sensors.
PTZ parameters: 1 × 4 MP 1/1.8″ CMOS image sensors.
> PTZ camera: Built-in laser illuminator, max. illumination distance: 100 m.
> PTZ camera: 25x optical zoom,16x digital zoom.
> H.265 codec, high compression rate, ultra-low bit rate.
> 3D NR, HLC, BLC, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Smart tracking.
> Built-in dual MICs and dual speakers, support two way-talk.
> Intelligent Functions: Panoramic Network Camera: Perimeter Protection; PTZ Camera: Perimeter Protection, Face Detection and Video Metadata.
DAHUA PSDW81642M-A180-D440-S3 16 MP Multi-Sensor 180¡ã Panoramic PTZ Hubble WizMind Network Camera
PSDW81642M-A180-D440-S3
> Channel 1 (Panoramic): 4 × 4 MP 1/1.8″ CMOS image sensors. Field of View:Horizontal: 1 × 180°: Vertical: 103°. Channel 2 (PTZ): 1 × 4 MP 1/1.8″ CMOS image sensors.
> Channel 2 (PTZ): 40x optical zoom, 16x digital zoom.
> Channel 2 (PTZ): Illumination distance up to 400 m.
> Channel 1 (Panoramic): Three switchable intelligent resources: Perimeter protection, crowd map, vehicle density.
> Channel 2 (PTZ): Three switchable intelligent resources:Perimeter protection, video metadata, face recognition.
> AR panorama technology; various AR tags can be overlaid.
> Smart tracking. GPS/BDS positioning.
> Smart H265+/H264+ encoding.
> WDR, 3D NR, HLC, BLC, applicable to various monitoring scenes.
> Alarm: 7 in, 3 out; audio: 2 in, 2 out; 1 channel BNC, 1 channel RS–485 (baud rate can be set). supports max. 512 G SD card.
DAHUA PSDW82442M-A270-D440-S3 24 MP Multi-Sensor 270¡ã Panoramic PTZ Hubble WizMind Network Camera
PSDW82442M-A270-D440-S3
> Channel 1 (Panoramic): 6 × 4 MP 1/1.8″ CMOS image sensors. Field of View:Horizontal: 1 × 270°, Vertical: 103°. Channel 2 (PTZ): 1 × 4 MP 1/1.8″ CMOS image sensors.
> Channel 2 (PTZ): 40x optical zoom,16x digital zoom.
> Channel 2 (PTZ): Illumination distance up to 400 m.
> Channel 1 (Panoramic): Three switchable intelligent resources: Perimeter protection, Crowd map, Vehicle density.
> Channel 2 (PTZ): Three switchable intelligent resources: Perimeter protection, Video metadata, Face recognition.
> AR panorama technology; various AR tags can be overlaid.
> Smart tracking. GPS/BDS positioning.
> Smart H265+/H264+ encoding.
> WDR, 3D NR, HLC, BLC, applicable to various monitoring scenes.
> Alarm: 7 in, 3 out; audio: 2 in, 2 out; 1 channel BNC, 1 channel RS–485 (baud rate can be set). supports max. 512 G SD card.
DAHUA PSDW81642M-A360-D440-S3 16 MP Multi-Sensor 360¡ã Panoramic PTZ Hubble WizMind Network Camera
PSDW81642M-A360-D440-S3
> Channel 1 (Panoramic): 8 × 2 MP 1/1.8″ CMOS image sensors. Field of View:Horizontal: 1 × 360°, Vertical: 103°. Channel 2 (PTZ): 1 × 4 MP 1/1.8″ CMOS image sensors.
> Channel 2 (PTZ): 40x optical zoom, 16x digital zoom.
> Channel 2 (PTZ): Illumination distance up to 400 m.
> Channel 1 (Panoramic): Three switchable intelligent resources: Perimeter protection, Crowd map, Vehicle density.
> Channel 2 (PTZ): Three switchable intelligent resources: Perimeter protection, Video metadata, Face recognition.
> AR panorama technology; various AR tags can be overlaid.
> Smart tracking. GPS/BDS positioning.
> Smart H265+/H264+ encoding.
> WDR, 3D NR, HLC, BLC, applicable to various monitoring scenes.
> Alarm: 7 in, 3 out; audio: 2 in, 2 out; 1 channel BNC, 1 channel RS–485 (baud rate can be set). supports max. 512 G SD card.
DAHUA PSDW83242M-A360-D845L-S3 32 MP Multi-Sensor 360¡ã Panoramic PTZ Hubble WizMind Network Camera
PSDW83242M-A360-D845L-S3
> Panoramic parameters: 8 × 4 MP 1/1.8″ CMOS image sensors. Outputs max. 32 MP (11520 × 2700)@25/30 fps.
> PTZ parameters: 1 × 8 MP 1/1.8″ CMOS image sensors. Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> PTZ camera: Built-in illuminators (2 × IR and 7 × laser), max. illumination distance: 500 m.
> PTZ camera: 45x optical zoom,16x digital zoom.
> H.265 codec, high compression rate, ultra-low bit rate.
> 3D NR, HLC, BLC, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 7 in, 3 out; audio: 2 in, 2 out; RS-485; BNC; supports max. 512 G SD card.
> Intelligent Functions:PTZ Camera: Perimeter Protection, Face Recognition and Video Metadata.
> GPS/BDS positioning.
DAHUA SDT8C842-8P-FA-APV-0280 4MP Starlight IR WizMind Network Dual-PTZ Camera
SDT8C842-8P-FA-APV-0280
8MP 42x Starlight Dual Light Network Panoramic PTZ Camera
> Panorama: 2 × 4 MP 1/1.8″ CMOS image sensor; Detail: 8MP 1/1.8″ CMOS image sensor.
> 42 x optical zoom.
> Max. 25/30fps@4K.
> IR distance up to 300 m.
> Auto tracking.
> Perimeter protection.
> Face detection.
> Wiper.
> IP67.
> Sound and light alarm.
> PoE++(802.3bt).
DAHUA SDT5X425-4Z4-FAJG-PV-0832 4MP 25x Starlight IR WizMind Network Dual-PTZ Camera for Traffic
SDT5X425-4Z4-FAJG-PV-0832
4MP 25x Starlight IR WizMind Network Dual-PTZ Camera for Traffic
> Dual PTZ system, dual vari-focal lens.
> 1/1.8″ 4Megapixel CMOS.
> Powerful 25x optical zoom.
> Starlight technology.
> Max. 25/30 fps@4M.
> H.265 encoding.
> IP67.
> Illegal parking detection and checkpoint capture.
DAHUA SDT5X425-4Z4-FAJG-2812 4MP 25x Starlight IR WizMind Network Dual-PTZ Camera for Traffic
SDT5X425-4Z4-FAJG-2812
4MP 25x Starlight IR WizMind Network Dual-PTZ Camera for Traffic
> Dual PTZ system, dual vari-focal lens.
> 1/1.8″ 4Megapixel CMOS.
> Powerful 25x optical zoom.
> Starlight technology.
> Max. 25/30 fps@4M.
> H.265 encoding.
> IP67.
> Illegal parking detection and checkpoint capture.
DAHUA SD8A840FA-HNT 8MP 40x Starlight IR WizMind Network PTZ Camera for Traffic
SD8A840FA-HNT
8MP 40x Starlight IR WizMind Network PTZ Camera for Traffic
> 1/1.8″ 8Megapixel STARVIS™ CMOS.
> Powerful 40x optical zoom.
> Starlight technology.
> Max. 25/30 fps@8MP.
> H.265 encoding.
> Illegal parking detection.
> ANPR.
> IP67.
DAHUA IPC-B2B20-L-ZS 2MP IR Mini-Bullet Network Camera
DAHUA IPC-B2B20-ZS 2MP IR Mini-Bullet Network Camera
DAHUA IPC-B2B40-ZS 4MP IR Mini-Bullet Network Camera
DAHUA IPC-D2B20-L-ZS 2MP IR Mini-Dome Network Camera
DAHUA IPC-D1B40 4MP IR Indoor Mini-Dome Network Camera
DAHUA IPC-D2B40 4MP IR Mini-Dome Network Camera
DAHUA IPC-D2B20-ZS 2MP IR Mini-Dome Network Camera
DAHUA IPC-D2B40-ZS 4MP IR Mini-Dome Network Camera
DAHUA IPC-EW5531-AS 5MP Panoramic Network IR Fisheye Camera
DAHUA IPC-EBW81242 12MP Panoramic Network IR Fisheye Camera
IPC-EBW81242
12MP Panoramic Network IR Fisheye Camera
> Max output 12MP (4000×3000)@30fps
> 3D DNR,AWB,HLC, BLC,ROI, SVC, SMART H.264/H.265
> People counting in multiple areas, queuing management in multiple areas, heat map (number of peole /time), and track map
> 2/2 Alarm in/out, 1/1 audio in/out
> 12V DC/POE power support
> IP67, IK10 protection
DAHUA IPC-EW5541-AS(Only For Jordan) DAHUA IPC-EW5541-AS(OnlyForJordan) 5MP WizMind IR Fisheye Network CAMERA
IPC-EW5541-AS(Only For Jordan)
5MP WizMind IR Fisheye Network CAMERA
> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 5MP (2592 × 1944) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance: 10 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire, people counting in area
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card
> 12V DC/PoE power supply, easy for installation
> Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
DAHUA IPC-HD4140X-3D 1.3MP Dual-Lens People Counting AI Network Camera
DAHUA IPC-HDBW1235E-W-S2 2MP IR Dome WI-FI Camera
IPC-HDBW1235E-W-S2
2MP IR Dome WI-FI Camera
> 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Max. IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Supports 256 G Micro SD card
> 12V DC power supply, easy for installation
> IP67, IK10 protection
> Supports Wi-Fi
DAHUA IPC-HDBW1435E-W-S2 4MP IR Dome WI-FI Camera
IPC-HDBW1435E-W-S2
> 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
> Outputs max. 4MP (2560 × 1440) @20 fps
> H.265 codec, high compression rate, ultra-low bit rate · Max. IR distance: 30 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Supports 256 G Micro SD card
> 12V DC power supply, easy for installation
> IP67, IK10 protection
> Supports Wi-Fi
DAHUA IPC-HDBW1831R-S 8MP WDR IR Dome Network Camera
DAHUA IPC-HDBW2831R-ZAS 8MP WDR IR Dome Network Camera
DAHUA IPC-HDBW2541E-S(Only For Project) DAHUA IPC-HDBW2541E-S(OnlyForProject) 5MP IR Fixed-focal Dome WizSense Network Camera
IPC-HDBW2541E-S(Only For Project)
5MP IR Fixed-focal Dome WizSense Network Camera
* The parameters and datasheets below can only be applied to 2541-S2 series.
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 ×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 protection.
> SMD Plus.
